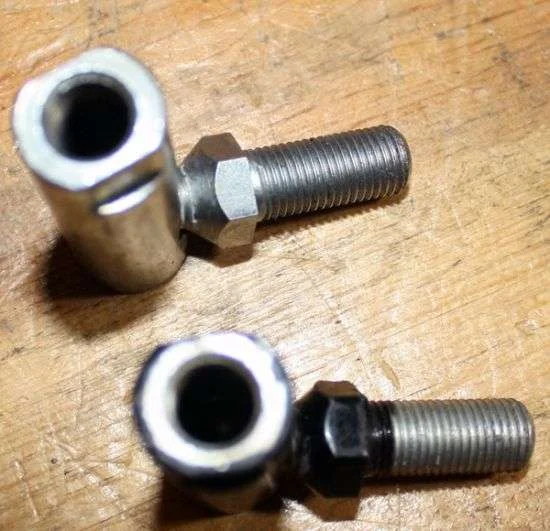

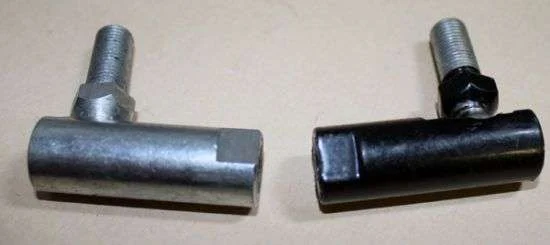

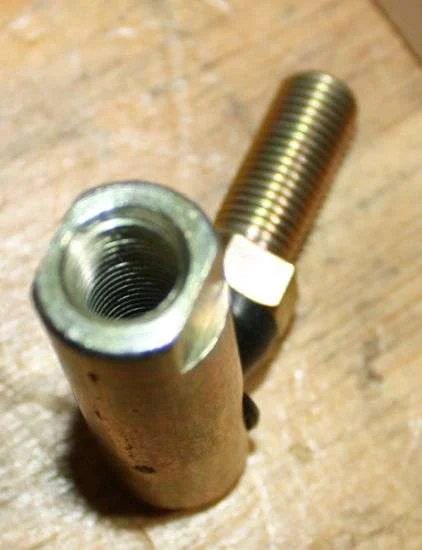

3/8″ Male & Female Ball Joint / Tie Rod End

Description

Part # ROT-2210

Ball Joint / Tie Rod End

Specifications:

• Ball End Connection Thread Provision Threaded
• Ball End Thread Location External
• Ball End Thread Direction Right
• Socket End Connection Thread Provision Threaded
• Socket End Thread Location Internal
• Socket End Thread Direction Right
• Ball End Thread Size and Series/Type Designator 3/8-24 unf
• Socket End Thread Size and Series/Type Designator 3/8-24 unf
• Special Features Nonadjustable spring not included
• Height 0.875 inches nominal
• III Material Steel
• Style Designator Single, right angle, tapered end

Replaces:

• ARIENS 00336900
• AYP 109850X
• Bobcat 108078
• CUB CADET 406304R1
• CUB CADET 723-3000
• CUB CADET 923-3000
• EXMARK 373077
• EXMARK 1-373077
• GRASSHOPPER 265615
• Gravely 21084
• GRAVELY 021084
• Gravely 2917100
• GRAVELY 02917100
• HUSQVARNA 532109850
• HMMWV / Humvee / Hummer 6058K28
• MTD 723-0156
• MTD 723-3018
• MTD 923-0156
• MTD 923-3018
• MURRAY  21031
• SIMPLICITY 1669567
• SIMPLICITY 1669567SM
• NOMA 21275
• SCAG 48118
• SNAPPER 10745
• SNAPPER 79813
• Snapper 1-0745
• Snapper / Kees 7010745
• Snapper / Kees 7010745YP
• TORO 112-0306
• Rotary 2210
