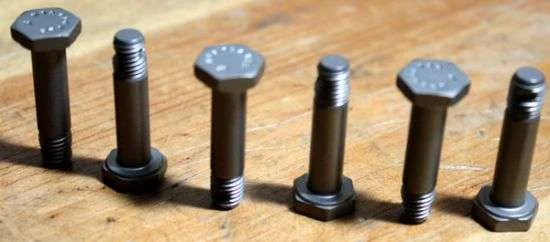

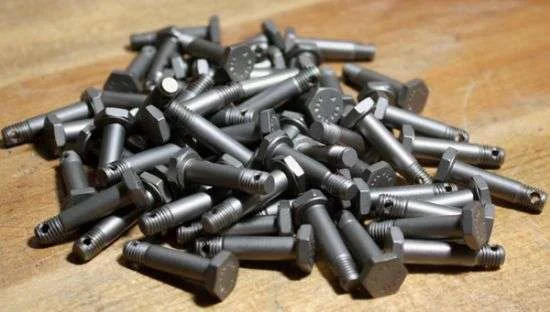

Aircraft Grade Titanium Shear Bolt / Pin

$2.09

Returns: 30 Days

SKU 5306-00-420-8261 Category Tags ,

Description

Part # NAS654V12D

Shear Bolt / Pin

Material: Titanium alloy uns R54520 overall
Minimum Tensile Strength: 160000 pounds per square inch
Fastener Length: 1.051 inches minimum and 1.081 inches maximum
Nominal Thread Diameter: 0.250 inches
Thread Class:
3A
Thread Quantity per Inch:
28
Thread Length:
0.291 inches minimum and 0.341 inches maximum
Thread Direction: Right-hand
Thread Series Designator: UNJF
Head Style: Hexagon
Head Height: 0.125 inches minimum and 0.140 inches maximum
Shank Unthreaded Hole Diameter: 0.076 inches minimum first hole and 0.086 inches maximum first hole
Distance from Head Largest Bearing Surface to Shank Hole Center: 0.923 inches minimum first hole and 0.973 inches maximum first hole
Width Between Flats: 0.430 inches minimum and 0.439 inches maximum
Grip Diameter: 0.2490 inches minimum and 0.2495 inches maximum
Grip Length: 0.740 inches minimum and 0.760 inches maximum
Material Document and Classification: Nas 621, 6AL-4V assn std single material response overall

This Shear Bolt is New, Unused, Military Surplus. The Military used this in the following applications:

  • Aircraft: C-5 – Galaxy
  • Aircraft: F-15 – Eagle
  • Aircraft: AV-8B – Harrier

This Shear Bolt was manufactured by:

National Aerospace Standards.

Additional information

Weight 0.02 lbs
Dimensions 8.2 × 5.5 × 1.5 in
