IHC International Navstar Workstar MRAP Wiring Harness #20-6572 SYN

$29.99

Returns: 30 Days

SKU 20-6572-SYN Categories , Tags ,

Description

IHC International Harvester Headlight / Turn Signal Wiring Harness.

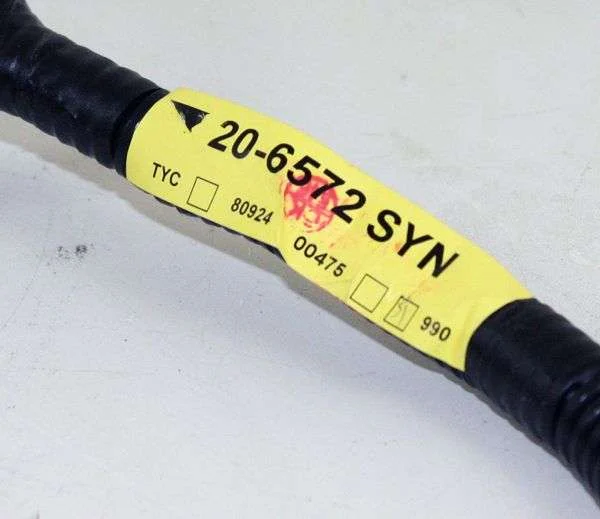

Part # 20-6572 SYN

This is a Y configuration wiring harness.

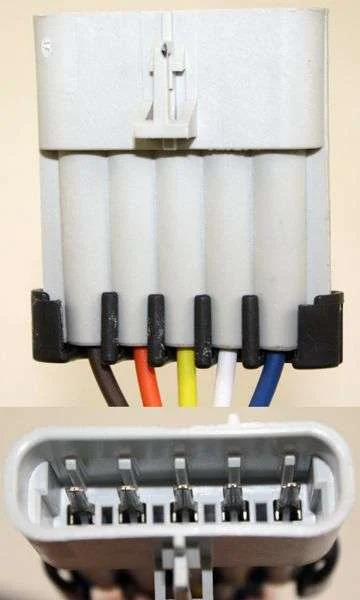

End 1 (to the control box / dashboard)
Part # 2589892C91
5 Wires
Blue / White / Yellow / Orange / Brown terminating in a 5 horizontal post plug

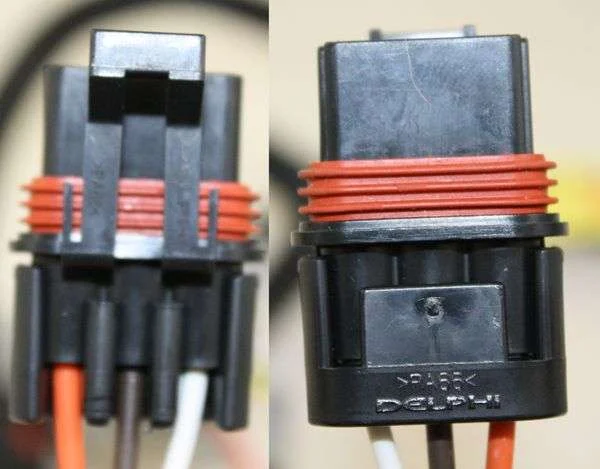

End 2 (Fuse)
Delphi PA 66

3 wires
Orange / Brown / White

End 3 (2 plugs, headlight turn signal)

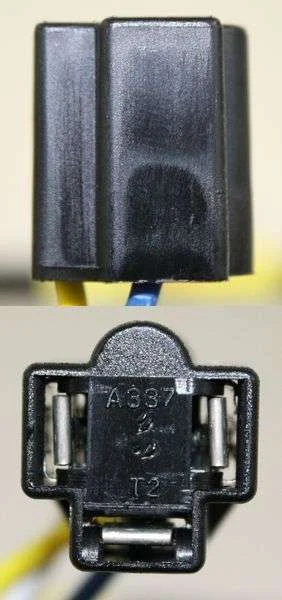

Headlight Plug
Part # A337 T2
3 Post 12V Headlight Plug
3 Wires
White / Yellow / Blue

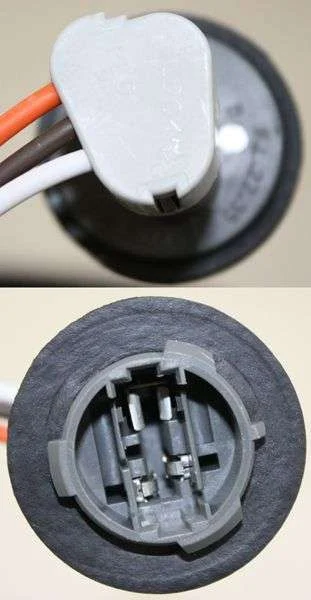

Turn Signal Plug
Delphi F.L.22.35
Locking Plug
3 Wires
Orange / Brown / White

This harness is new, unused, removed from a new Lightning Assembly, and is compatiable with Navstar, Workstar, and MRAP products.

Additional information

Weight 1.5 lbs
Dimensions 8.2 × 5.5 × 1.5 in
