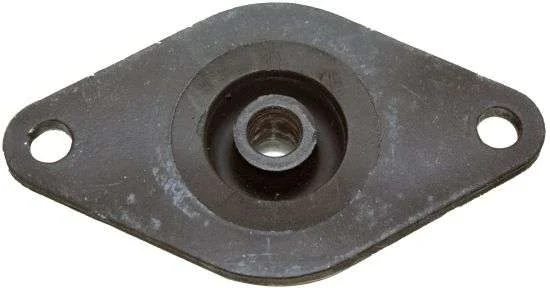

Rubber Shock Absorber Mount: .375" ID 4.25" L 2.375" W

$4.95

Returns: 30 Days

SKU 18444-Shock Category Tags ,

Description

Part # 18444
Rubber Shock Mount, Flange Style

Specs:

  • Inside Diameter: 0.375 inches nominal
  • Flange Thickness: 0.333 inches nominal
  • Distance Between Mounting Hole Centers: 3.500 inches nominal
  • Flange Length: 4.250 inches nominal
  • Flange Width: 2.375 inches nominal
  • Maximum Load Rating: 25.0 pounds
  • Distance from Flange to End: 1.313 inches nominal
  • Flange Mounting Hole Diameter: 0.328 inches nominal
  • Height: 2.250 inches nominal
  • Material: Steel overall
  • Style Designator: Round W/flanged bushing two-hole flange

Associated Part Numbers:

  • NSN: 5342-00-530-8810
  • Superceded NSN: 5340-01-064-6694
  • Superceded NIIN: 010646694
  • Part # 18444
  • Sku: 11M25
  • Associated Part Numbers and Sku’s:
    11M25
    5000-1112-13858
    5000-1112-1385824REVAPC11M25
    5000-1112-1385824REVAPC1T04
    5000-S1112-1385
    803-1385824TYPE11M25
    J7576-25 25472
    J7576-25 76005
    MIL-M-19379


This item is a New, Unused, Open Box, Flange Style Shock Absorber / Mount. This item was used by the United States Military as a part of the following systems:

  •
  • Nuclear Reactors Program
  • Ohio Class Ssbn (Trident)
  • Countermeasure set, AN/SLQ-32
  • Fire Control System, Mk 92 (Fcs)
  • Los Angeles Class Ssn (688)
  • Ticonderoga Class Cg (47)
  • Advanced Seal Delivery System (Asds)
  • Mt Whitney LCC-20 Class
  • Forrestal Class Cv
  • Nimitz Class Cvn
  • Arleigh Burke Class Ddg
  • Seawolf Class Ssn
  • Wasp Class Lhd
  • Tarawa Class Lha
  • Fms – Knox Class Ff
  • Whidbey Island Class Lsd
  • Fms – Newport Class Lst
  • Avenger Class Mcm
  • Usns Henry J. Kaiser Class Tao
  • Blue Ridge Class LCC-19
  • Submarine Auxiliary System
  • Submarine Hull Structure
  • Submarine Outfitting & Furnishings
  • Ship Control and Integrated Control Systems
  • Impeccable Class T-Agos 23
  • Austin Class (LPD-4)
  • Submarine Atmosphere Control and Compressed Air/gas
  • Submarine Ship Control and Navigation Systems
  • Submarine Auxillary and Miscellaneous Systems
  • Submarine Engineering and Diesel Systems
  • Ventilation
  • Submarine Hydraulic Systems
  • Nuclear Reactor Boundry Area
  • Virginia Class Submarine, SSN-774
  • Fms – Build Frigates Class Ships
  • LPD-17 Class Amphibious Transport Dock
  • SSN23 Mmp Systems

Additional information

Weight 0.5 lbs
Dimensions 8.2 × 5.5 × 1.5 in
